EEE-HAE101XAP

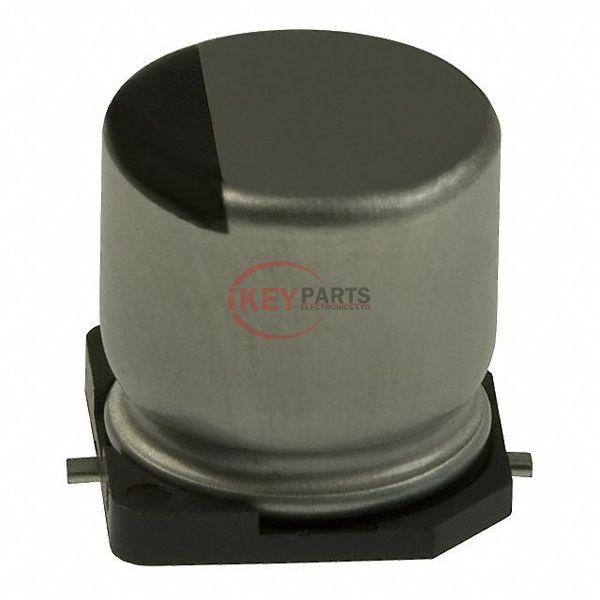

Enlarger

Lmages are for reference only See Product Specitications

Panasonic EEE-HAE101XAP

Manufacturer :
Panasonic
Mfr. Part # :
EEE-HAE101XAP
Description
CAP ALUM 100UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EEE-HAE101XAP PDF
In Stock
957
EEE-HAE101XAP Tech Specifications
SeriesHA
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Capacitance100 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.1000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency91 mA @ 120 Hz
Ripple Current @ High Frequency154.7 mA @ 10 kHz
Impedance-
Lead Spacing-
Size / Dimension0.248" Dia (6.30mm)
Height - Seated (Max)0.303" (7.70mm)
Surface Mount Land Size0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EEE-HAE101XAP, use the request quote form to request EEE-HAE101XAP pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EEE-HAE101XAP. The price and lead time for EEE-HAE101XAP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EEE-HAE101XAP. We look forward to working with you to establish long-term relations of cooperation.
