UCX1E222MNS1ZD

Enlarger

Lmages are for reference only See Product Specitications

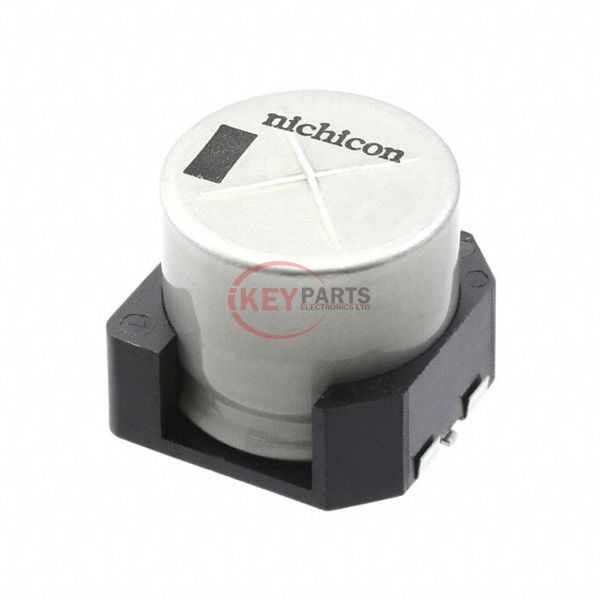

Nichicon UCX1E222MNS1ZD

Manufacturer :
Nichicon
Mfr. Part # :
UCX1E222MNS1ZD
Description
CAP ALUM 2200UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UCX1E222MNS1ZD PDF
In Stock
120
UCX1E222MNS1ZD Tech Specifications
SeriesUCX
PackageTray
Part StatusActive
Capacitance2200 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)50mOhm
Lifetime @ Temp.2000 Hrs @ 135°C
Operating Temperature-40°C ~ 135°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency700 mA @ 120 Hz
Ripple Current @ High Frequency1.4 A @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.709" Dia (18.00mm)
Height - Seated (Max)0.669" (17.00mm)
Surface Mount Land Size0.752" L x 0.752" W (19.10mm x 19.10mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply UCX1E222MNS1ZD, use the request quote form to request UCX1E222MNS1ZD pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UCX1E222MNS1ZD. The price and lead time for UCX1E222MNS1ZD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UCX1E222MNS1ZD. We look forward to working with you to establish long-term relations of cooperation.
