UPA1E561MPD1TD

Enlarger

Lmages are for reference only See Product Specitications

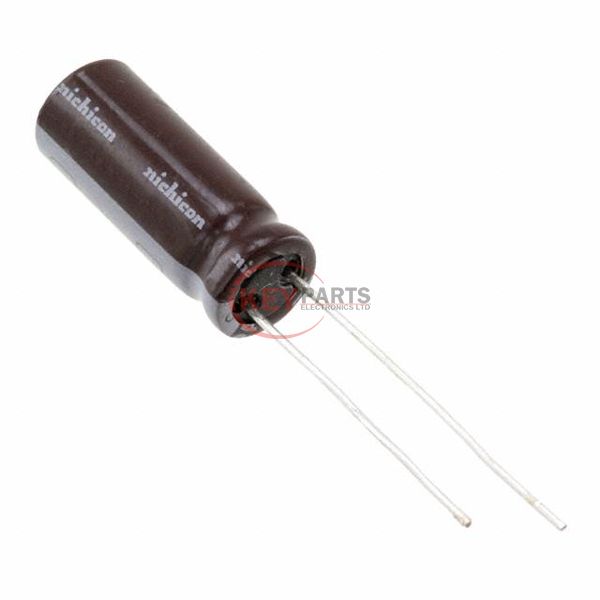

Nichicon UPA1E561MPD1TD

Manufacturer :
Nichicon
Mfr. Part # :
UPA1E561MPD1TD
Description
CAP ALUM 560UF 20% 25V RADIAL
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UPA1E561MPD1TD PDF
In Stock
952
UPA1E561MPD1TD Tech Specifications
SeriesUPA
PackageCut Tape (CT)Tape & Box (TB)
Part StatusActive
Capacitance560 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.3000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency915 mA @ 120 Hz
Ripple Current @ High Frequency1.22 A @ 100 kHz
Impedance44 mOhms
Lead Spacing0.138" (3.50mm)
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.866" (22.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
Request Quote Now
Request Quote Now

We can supply UPA1E561MPD1TD, use the request quote form to request UPA1E561MPD1TD pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UPA1E561MPD1TD. The price and lead time for UPA1E561MPD1TD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UPA1E561MPD1TD. We look forward to working with you to establish long-term relations of cooperation.
