EEE-FN1A560UR

Enlarger

Lmages are for reference only See Product Specitications

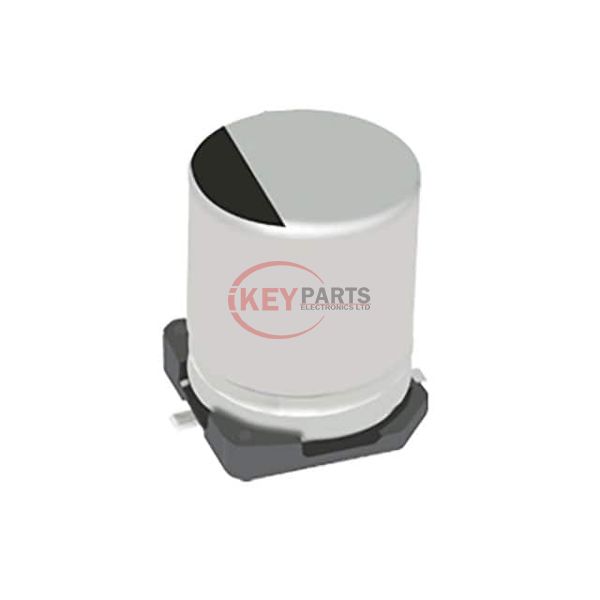

Panasonic EEE-FN1A560UR

Manufacturer :
Panasonic
Mfr. Part # :
EEE-FN1A560UR
Description
CAP ALUM 56UF 10VDC 20% SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EEE-FN1A560UR PDF
In Stock
3988
EEE-FN1A560UR Tech Specifications
SeriesFN
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Capacitance56 µF
Tolerance±20%
Voltage - Rated10 V
ESR (Equivalent Series Resistance)1.35Ohm @ 100kHz
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency58.5 mA @ 120 Hz
Ripple Current @ High Frequency90 mA @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.157" Dia (4.00mm)
Height - Seated (Max)0.240" (6.10mm)
Surface Mount Land Size0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EEE-FN1A560UR, use the request quote form to request EEE-FN1A560UR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EEE-FN1A560UR. The price and lead time for EEE-FN1A560UR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EEE-FN1A560UR. We look forward to working with you to establish long-term relations of cooperation.
