UWD1E220MCL1GS

Enlarger

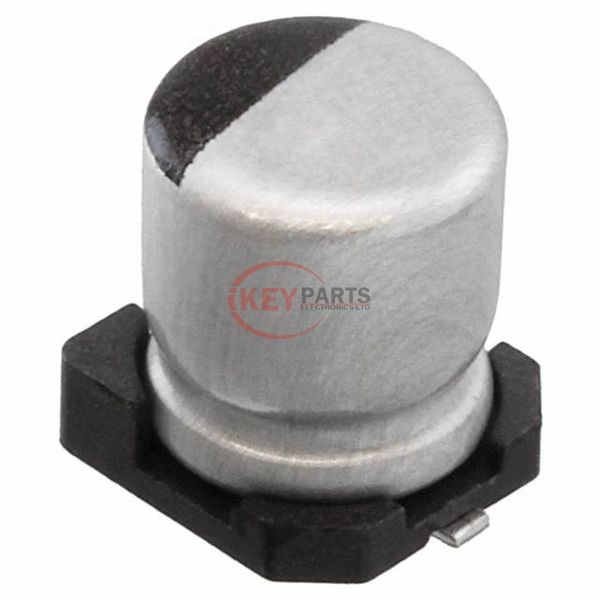

Lmages are for reference only See Product Specitications

Nichicon UWD1E220MCL1GS

Manufacturer :
Nichicon
Mfr. Part # :
UWD1E220MCL1GS
Description
CAP ALUM 22UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UWD1E220MCL1GS PDF
In Stock
420
UWD1E220MCL1GS Tech Specifications
SeriesUWD
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Capacitance22 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
Polarization-
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency75 mA @ 120 Hz
Ripple Current @ High Frequency150 mA @ 100 kHz
Impedance760 mOhms
Lead Spacing-
Size / Dimension0.197" Dia (5.00mm)
Height - Seated (Max)0.228" (5.80mm)
Surface Mount Land Size0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply UWD1E220MCL1GS, use the request quote form to request UWD1E220MCL1GS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UWD1E220MCL1GS. The price and lead time for UWD1E220MCL1GS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UWD1E220MCL1GS. We look forward to working with you to establish long-term relations of cooperation.
