ESMH100VSN563MR45T

Enlarger

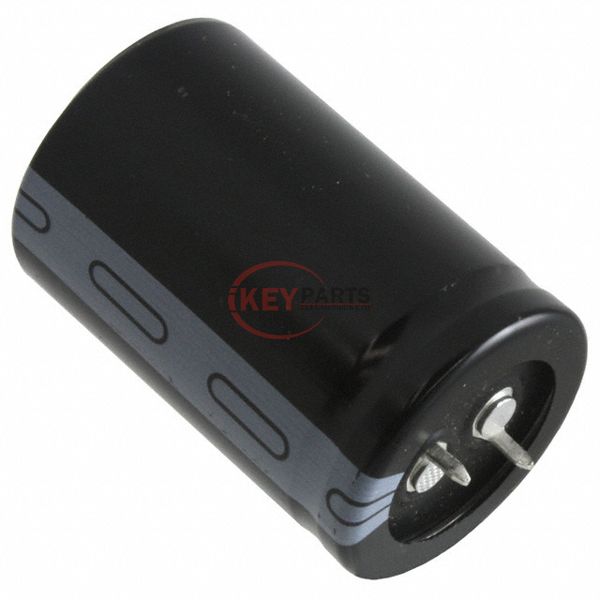

Lmages are for reference only See Product Specitications

United Chemi-Con ESMH100VSN563MR45T

Manufacturer :
United Chemi-Con
Mfr. Part # :
ESMH100VSN563MR45T
Description
CAP ALUM 56000UF 20% 10V SNAP
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ESMH100VSN563MR45T PDF
In Stock
180
ESMH100VSN563MR45T Tech Specifications
SeriesSMH
PackageBulk
Part StatusObsolete
Capacitance56000 µF
Tolerance±20%
Voltage - Rated10 V
ESR (Equivalent Series Resistance)15mOhm @ 120Hz
Lifetime @ Temp.2000 Hrs @ 85°C
Operating Temperature-40°C ~ 85°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency6.44 A @ 120 Hz
Ripple Current @ High Frequency6.9552 A @ 100 kHz
Impedance-
Lead Spacing0.394" (10.00mm)
Size / Dimension1.181" Dia (30.00mm)
Height - Seated (Max)1.772" (45.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can - Snap-In
Request Quote Now
Request Quote Now

We can supply ESMH100VSN563MR45T, use the request quote form to request ESMH100VSN563MR45T pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ESMH100VSN563MR45T. The price and lead time for ESMH100VSN563MR45T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ESMH100VSN563MR45T. We look forward to working with you to establish long-term relations of cooperation.
