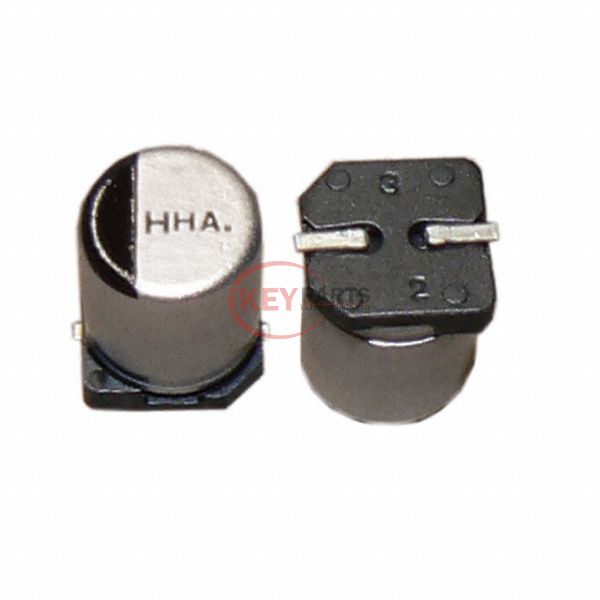

AHA226M2AF24T-F

Enlarger

Lmages are for reference only See Product Specitications

Cornell Dubilier Electronics AHA226M2AF24T-F

Manufacturer :
Cornell Dubilier Electronics
Mfr. Part # :
AHA226M2AF24T-F
Description
CAP ALUM 22UF 20% 100V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AHA226M2AF24T-F PDF
In Stock
369
AHA226M2AF24T-F Tech Specifications
SeriesAHA
PackageTape & Reel (TR)
Part StatusActive
Capacitance22 µF
Tolerance±20%
Voltage - Rated100 V
ESR (Equivalent Series Resistance)13.6Ohm @ 120Hz
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive, Bypass, Decoupling
Ripple Current @ Low Frequency55 mA @ 120 Hz
Ripple Current @ High Frequency93.5 mA @ 10 kHz
Impedance-
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.402" (10.20mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply AHA226M2AF24T-F, use the request quote form to request AHA226M2AF24T-F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AHA226M2AF24T-F. The price and lead time for AHA226M2AF24T-F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AHA226M2AF24T-F. We look forward to working with you to establish long-term relations of cooperation.
