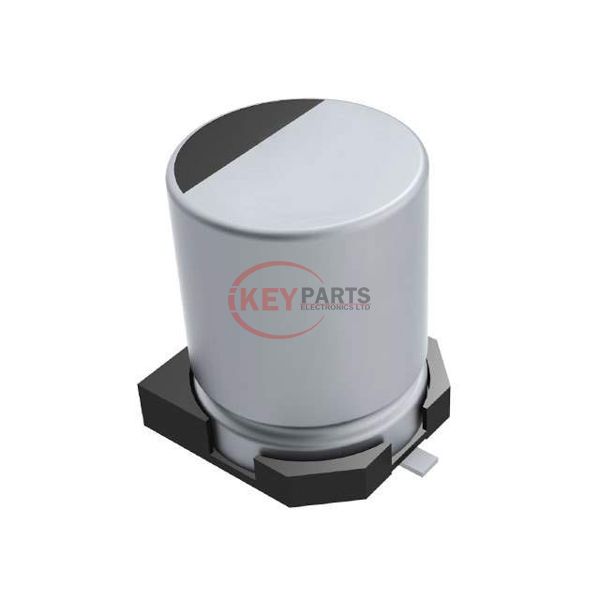

EDH226M025S9GAA

Enlarger

Lmages are for reference only See Product Specitications

KEMET EDH226M025S9GAA

Manufacturer :
KEMET
Mfr. Part # :
EDH226M025S9GAA
Description
CAP ALUM 22UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EDH226M025S9GAA PDF
In Stock
889
EDH226M025S9GAA Tech Specifications
SeriesEDH
PackageTape & Reel (TR)
Part StatusActive
Capacitance22 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency55 mA @ 120 Hz
Ripple Current @ High Frequency68.75 mA @ 10 kHz
Impedance-
Lead Spacing-
Size / Dimension0.248" Dia (6.30mm)
Height - Seated (Max)0.222" (5.65mm)
Surface Mount Land Size0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EDH226M025S9GAA, use the request quote form to request EDH226M025S9GAA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EDH226M025S9GAA. The price and lead time for EDH226M025S9GAA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EDH226M025S9GAA. We look forward to working with you to establish long-term relations of cooperation.
