EEE-TK1H681AM

Enlarger

Lmages are for reference only See Product Specitications

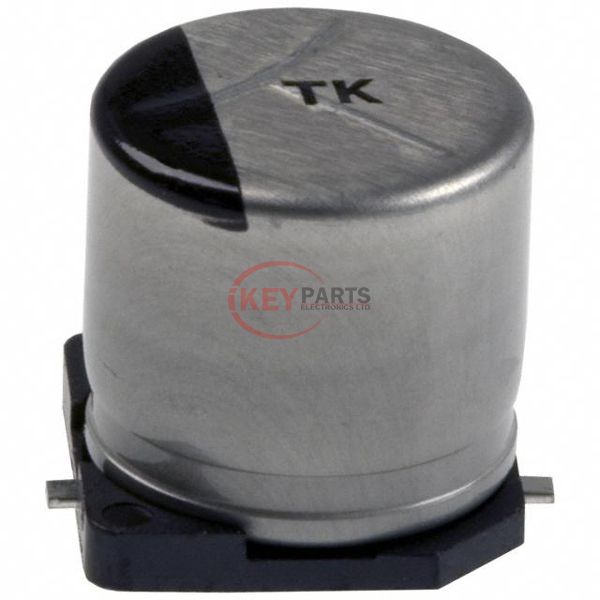

Panasonic EEE-TK1H681AM

Manufacturer :
Panasonic
Mfr. Part # :
EEE-TK1H681AM
Description
CAP ALUM 680UF 20% 50V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EEE-TK1H681AM PDF
In Stock
286
EEE-TK1H681AM Tech Specifications
SeriesTK
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Capacitance680 µF
Tolerance±20%
Voltage - Rated50 V
ESR (Equivalent Series Resistance)140mOhm @ 100kHz
Lifetime @ Temp.2000 Hrs @ 125°C
Operating Temperature-40°C ~ 125°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency712.5 mA @ 120 Hz
Ripple Current @ High Frequency950 mA @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.709" Dia (18.00mm)
Height - Seated (Max)0.650" (16.50mm)
Surface Mount Land Size0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EEE-TK1H681AM, use the request quote form to request EEE-TK1H681AM pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EEE-TK1H681AM. The price and lead time for EEE-TK1H681AM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EEE-TK1H681AM. We look forward to working with you to establish long-term relations of cooperation.
