UCD1H681MNQ1MS

Enlarger

Lmages are for reference only See Product Specitications

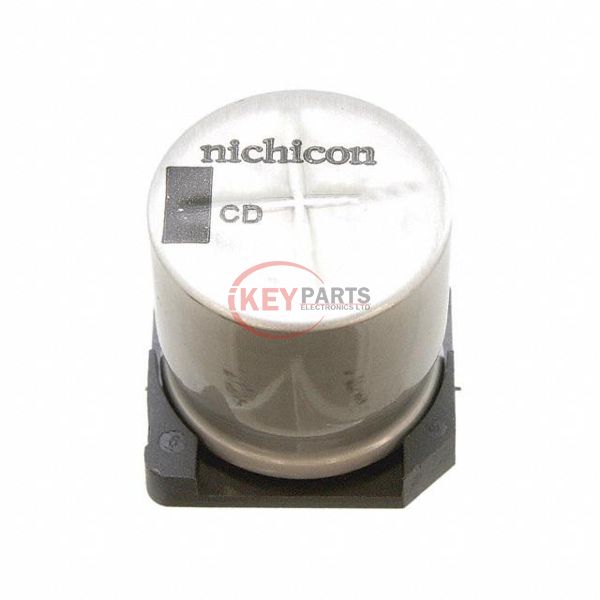

Nichicon UCD1H681MNQ1MS

Manufacturer :
Nichicon
Mfr. Part # :
UCD1H681MNQ1MS
Description
CAP ALUM 680UF 20% 50V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UCD1H681MNQ1MS PDF
In Stock
285
UCD1H681MNQ1MS Tech Specifications
SeriesUCD
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Capacitance680 µF
Tolerance±20%
Voltage - Rated50 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.5000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency805 mA @ 120 Hz
Ripple Current @ High Frequency1.61 A @ 100 kHz
Impedance73 mOhms
Lead Spacing-
Size / Dimension0.630" Dia (16.00mm)
Height - Seated (Max)0.689" (17.50mm)
Surface Mount Land Size0.673" L x 0.673" W (17.10mm x 17.10mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply UCD1H681MNQ1MS, use the request quote form to request UCD1H681MNQ1MS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UCD1H681MNQ1MS. The price and lead time for UCD1H681MNQ1MS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UCD1H681MNQ1MS. We look forward to working with you to establish long-term relations of cooperation.
