686AXZ035M

Enlarger

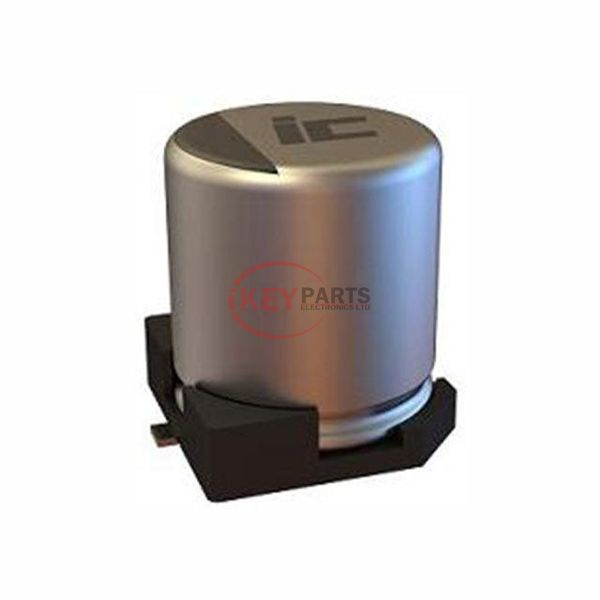

Lmages are for reference only See Product Specitications

Cornell Dubilier Electronics 686AXZ035M

Manufacturer :
Cornell Dubilier Electronics
Mfr. Part # :
686AXZ035M
Description
CAP ALUM 68UF 20% 35V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
686AXZ035M PDF
686AXZ035M Tech Specifications
SeriesAXZ
PackageBulk
Part StatusActive
Capacitance68 µF
Tolerance±20%
Voltage - Rated35 V
ESR (Equivalent Series Resistance)2.93Ohm @ 120Hz
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency140 mA @ 120 Hz
Ripple Current @ High Frequency280 mA @ 100 kHz
Impedance340 mOhms
Lead Spacing-
Size / Dimension0.248" Dia (6.30mm)
Height - Seated (Max)0.307" (7.80mm)
Surface Mount Land Size0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply 686AXZ035M, use the request quote form to request 686AXZ035M pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 686AXZ035M. The price and lead time for 686AXZ035M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 686AXZ035M. We look forward to working with you to establish long-term relations of cooperation.
