SN74HCT02DBLE

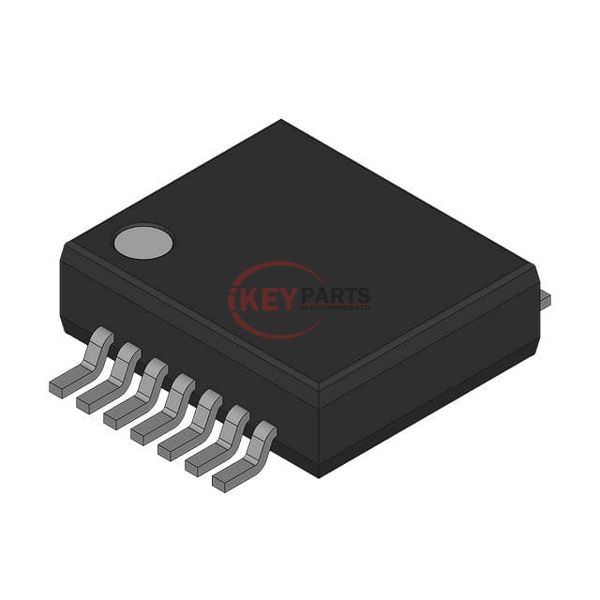

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics SN74HCT02DBLE

Manufacturer :
Rochester Electronics
Mfr. Part # :
SN74HCT02DBLE
Description
IC GATE NOR 2CH 4-INP 14SSOP
Catalog
Logic - Gates and Inverters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SN74HCT02DBLE PDF
In Stock
814
SN74HCT02DBLE Tech Specifications
Series74HCT
PackageBulk
Part StatusActive
Logic TypeNOR Gate
Number of Circuits2
Number of Inputs4
Features-
Voltage - Supply2V ~ 6V
Current - Quiescent (Max)2 µA
Current - Output High, Low5.2mA, 5.2mA
Logic Level - Low0.3V ~ 1.2V
Logic Level - High1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL20ns @ 6V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package14-SSOP
Package / Case14-SSOP (0.209", 5.30mm Width)
Request Quote Now
Request Quote Now

We can supply SN74HCT02DBLE, use the request quote form to request SN74HCT02DBLE pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SN74HCT02DBLE. The price and lead time for SN74HCT02DBLE depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SN74HCT02DBLE. We look forward to working with you to establish long-term relations of cooperation.
