Series | 74ALS | |
Package | Tube | |
Part Status | Obsolete | |
Logic Type | AND Gate | |
Number of Circuits | 4 | |
Number of Inputs | 2 | |
Features | Open Collector | |
Voltage - Supply | 4.5V ~ 5.5V | |
Current - Quiescent (Max) | - | |
Current - Output High, Low | -, 8mA | |
Logic Level - Low | 0.8V | |
Logic Level - High | 2V | |
Max Propagation Delay @ V, Max CL | 54ns @ 5V, 50pF | |
Operating Temperature | 0°C ~ 70°C | |
Mounting Type | Surface Mount | |

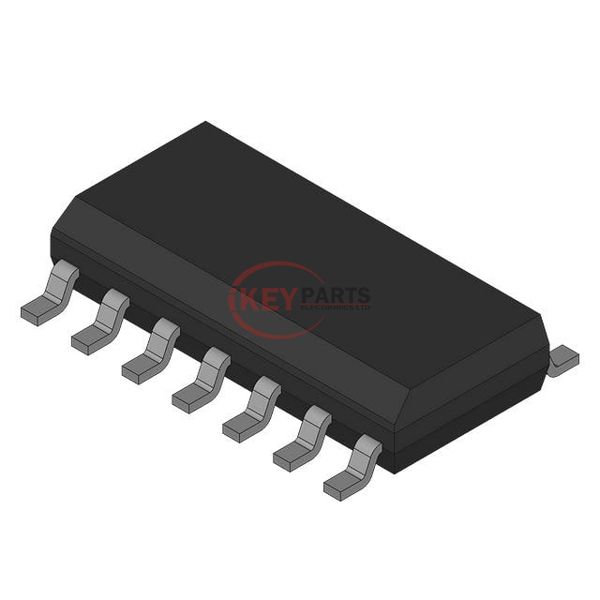

Supplier Device Package | 14-SOIC | |
Package / Case | 14-SOIC (0.154", 3.90mm Width) |
We can supply SN74ALS09DE4, use the request quote form to request SN74ALS09DE4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SN74ALS09DE4. The price and lead time for SN74ALS09DE4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SN74ALS09DE4. We look forward to working with you to establish long-term relations of cooperation.
![]() |
