Series | 74LVX | |
Package | Bulk | |
Part Status | Active | |
Logic Type | NAND Gate | |
Number of Circuits | 4 | |
Number of Inputs | 2 | |
Features | - | |
Voltage - Supply | 2V ~ 3.6V | |
Current - Quiescent (Max) | 2 µA | |
Current - Output High, Low | 4mA, 4mA | |
Logic Level - Low | 0.5V ~ 0.8V | |
Logic Level - High | 1.5V ~ 2.4V | |
Max Propagation Delay @ V, Max CL | 9.7ns @ 3.3V, 50pF | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |

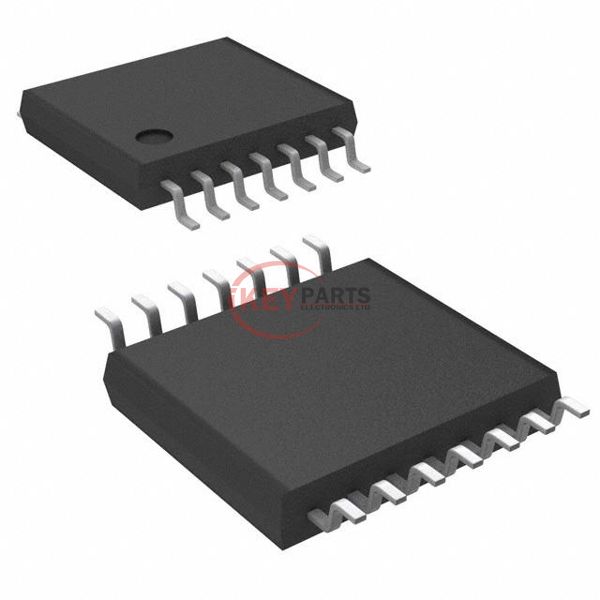

Supplier Device Package | 14-TSSOP | |
Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
We can supply MC74LVX00DTR2G, use the request quote form to request MC74LVX00DTR2G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MC74LVX00DTR2G. The price and lead time for MC74LVX00DTR2G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MC74LVX00DTR2G. We look forward to working with you to establish long-term relations of cooperation.
![]() |
