| Series | TC7SH | |
| Package | Tape & Reel (TR)Cut Tape (CT) | |
| Part Status | Active | |
| Logic Type | AND Gate | |
| Number of Circuits | 1 | |
| Number of Inputs | 2 | |
| Features | Open Drain | |
| Voltage - Supply | 2V ~ 5.5V | |
| Current - Quiescent (Max) | 2 µA | |
| Current - Output High, Low | -, 8mA | |
| Logic Level - Low | 0.5V ~ 1.65V | |
| Logic Level - High | 1.5V ~ 3.85V | |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | SMV | |

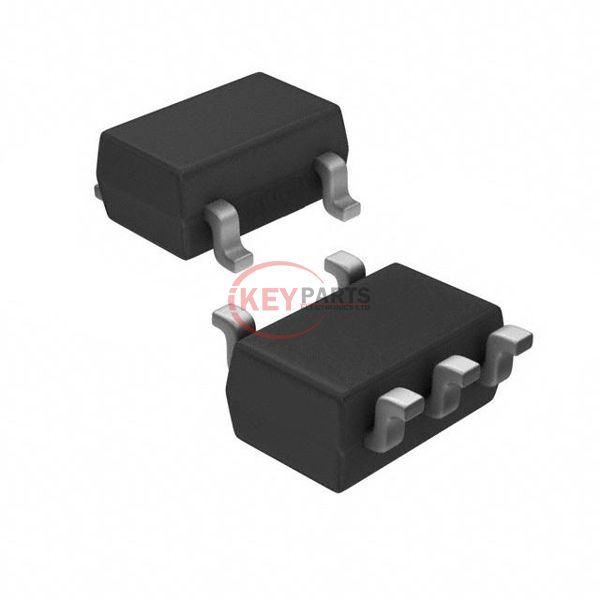

| Package / Case | SC-74A, SOT-753 |
We can supply TC7SH09F,LJ(CT, use the request quote form to request TC7SH09F,LJ(CT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TC7SH09F,LJ(CT. The price and lead time for TC7SH09F,LJ(CT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TC7SH09F,LJ(CT. We look forward to working with you to establish long-term relations of cooperation.
