SN74LVC1G00DCKTG4

Enlarger

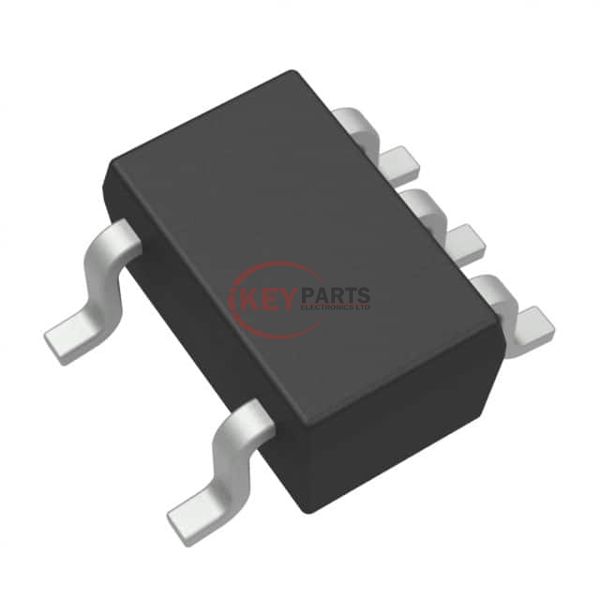

Lmages are for reference only See Product Specitications

Texas Instruments SN74LVC1G00DCKTG4

Manufacturer :
Texas Instruments
Mfr. Part # :
SN74LVC1G00DCKTG4
Description
IC GATE NAND 1CH 2-INP SC70-5
Catalog
Logic - Gates and Inverters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SN74LVC1G00DCKTG4 PDF
In Stock
400
SN74LVC1G00DCKTG4 Tech Specifications
Series74LVC
PackageTape & Reel (TR)
Part StatusActive
Logic TypeNAND Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)10 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL4.3ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device PackageSC-70-5
Package / Case5-TSSOP, SC-70-5, SOT-353
Request Quote Now
Request Quote Now

We can supply SN74LVC1G00DCKTG4, use the request quote form to request SN74LVC1G00DCKTG4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SN74LVC1G00DCKTG4. The price and lead time for SN74LVC1G00DCKTG4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SN74LVC1G00DCKTG4. We look forward to working with you to establish long-term relations of cooperation.
