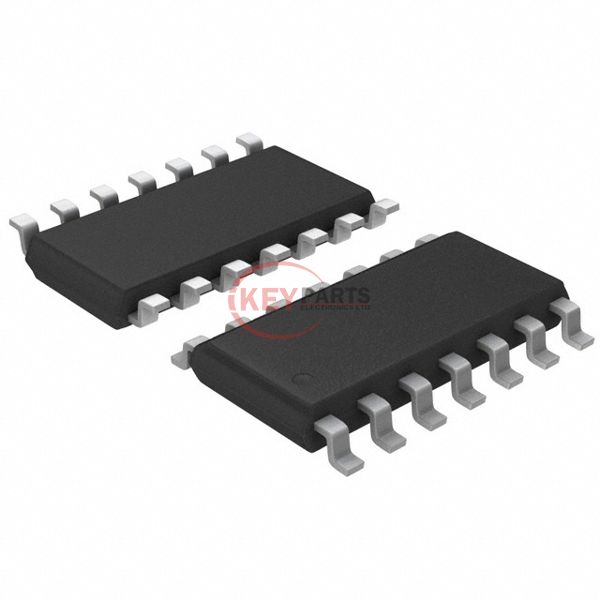

SN74LS09D

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments SN74LS09D

Manufacturer :
Texas Instruments
Mfr. Part # :
SN74LS09D
Description
IC GATE AND OPEN 4CH 2-IN 14SOIC
Catalog
Logic - Gates and Inverters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SN74LS09D PDF
In Stock
508
SN74LS09D Tech Specifications
Series74LS
PackageTube
Part StatusActive
Logic TypeAND Gate
Number of Circuits4
Number of Inputs2
FeaturesOpen Collector
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Max)-
Current - Output High, Low-, 8mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL35ns @ 5V, 15pF
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Supplier Device Package14-SOIC
Package / Case14-SOIC (0.154", 3.90mm Width)
Request Quote Now
Request Quote Now

We can supply SN74LS09D, use the request quote form to request SN74LS09D pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SN74LS09D. The price and lead time for SN74LS09D depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SN74LS09D. We look forward to working with you to establish long-term relations of cooperation.
