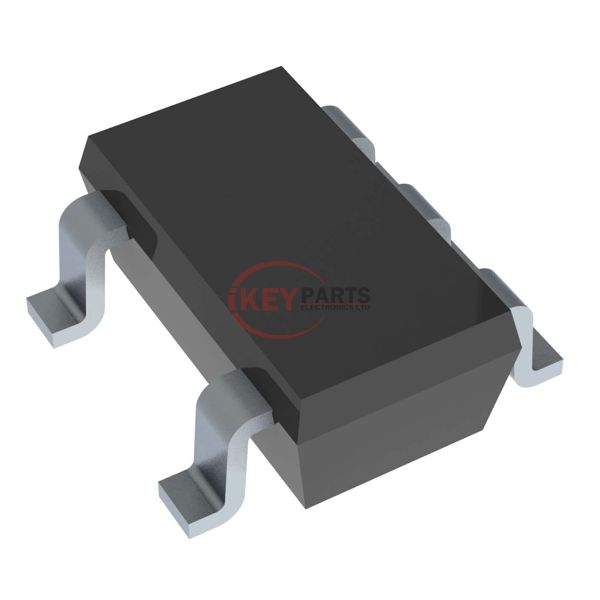

SN74LV1T86DBVR

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments SN74LV1T86DBVR

Manufacturer :
Texas Instruments
Mfr. Part # :
SN74LV1T86DBVR
Description
IC GATE XOR 1CH 2-INP SOT23-5
Catalog
Logic - Gates and Inverters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SN74LV1T86DBVR PDF
SN74LV1T86DBVR Tech Specifications
Series74LV
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Logic TypeXOR (Exclusive OR)
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply1.6V ~ 5.5V
Current - Quiescent (Max)10 µA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.58V ~ 0.8V
Logic Level - High0.94V ~ 2.1V
Max Propagation Delay @ V, Max CL7ns @ 5V, 30pF
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-5
Package / CaseSC-74A, SOT-753
Request Quote Now
Request Quote Now

We can supply SN74LV1T86DBVR, use the request quote form to request SN74LV1T86DBVR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SN74LV1T86DBVR. The price and lead time for SN74LV1T86DBVR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SN74LV1T86DBVR. We look forward to working with you to establish long-term relations of cooperation.
