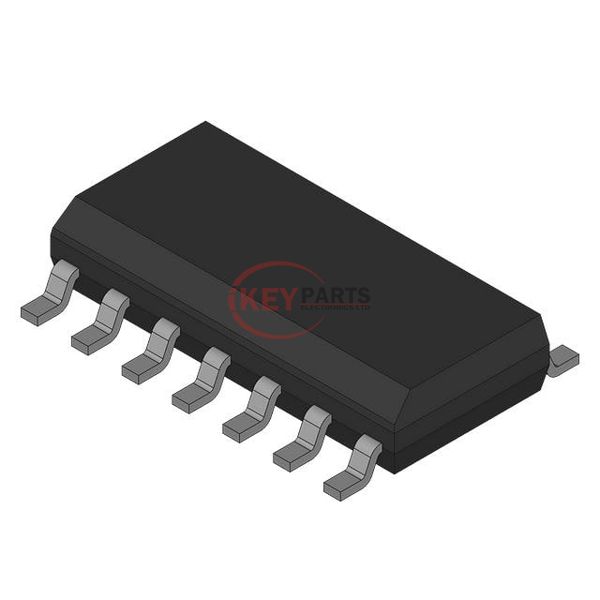

SN74AHC02DG4

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics SN74AHC02DG4

Manufacturer :
Rochester Electronics
Mfr. Part # :
SN74AHC02DG4
Description
IC GATE NOR 4CH 2-INP 14SOIC
Catalog
Logic - Gates and Inverters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SN74AHC02DG4 PDF
SN74AHC02DG4 Tech Specifications
Series74AHC
PackageTube
Part StatusObsolete
Logic TypeNOR Gate
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply2V ~ 5.5V
Current - Quiescent (Max)2 µA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.5V ~ 1.65V
Logic Level - High1.5V ~ 3.85V
Max Propagation Delay @ V, Max CL8.5ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package14-SOIC
Package / Case14-SOIC (0.154", 3.90mm Width)
Request Quote Now
Request Quote Now

We can supply SN74AHC02DG4, use the request quote form to request SN74AHC02DG4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SN74AHC02DG4. The price and lead time for SN74AHC02DG4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SN74AHC02DG4. We look forward to working with you to establish long-term relations of cooperation.
