| Series | - | |
| Package | Bulk | |
| Part Status | Active | |
| Output Type | Transistor Driver | |
| Function | Step-Up, Step-Down, Step-Up/Step-Down | |
| Output Configuration | Positive | |
| Topology | - | |
| Number of Outputs | 2 | |
| Output Phases | 1 | |
| Voltage - Supply (Vcc/Vdd) | 8.4V ~ 30V | |
| Frequency - Switching | 340kHz ~ 460kHz | |
| Duty Cycle (Max) | 85% | |
| Synchronous Rectifier | No | |
| Clock Sync | No | |
| Serial Interfaces | - | |
| Control Features | Current Limit, Enable, Frequency Control, Ramp, Soft Start | |
| Operating Temperature | 0°C ~ 70°C (TA) | |
| Mounting Type | Surface Mount | |

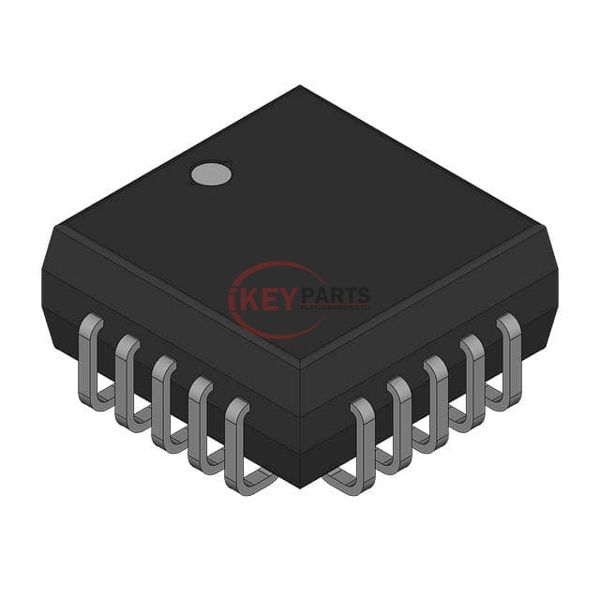

| Package / Case | 20-LCC (J-Lead) | |
| Supplier Device Package | 20-PLCC (8.96x8.96) |
We can supply UC3825Q-TI, use the request quote form to request UC3825Q-TI pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UC3825Q-TI. The price and lead time for UC3825Q-TI depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UC3825Q-TI. We look forward to working with you to establish long-term relations of cooperation.
