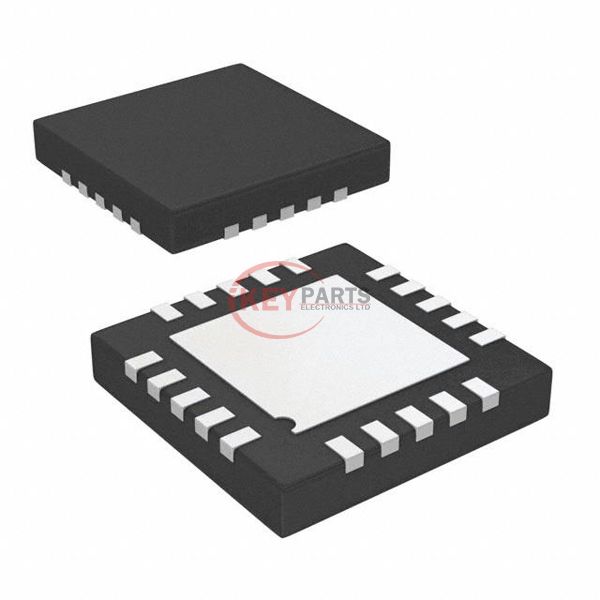

ADP1853ACPZ-R7

Enlarger

Lmages are for reference only See Product Specitications

Linear Technology (Analog Devices, Inc.) ADP1853ACPZ-R7

Manufacturer :
Linear Technology (Analog Devices, Inc.)
Mfr. Part # :
ADP1853ACPZ-R7
Description
IC REG CTRLR BUCK 20LFCSP
Catalog
PMIC - Voltage Regulators - DC DC Switching Controllers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ADP1853ACPZ-R7 PDF
In Stock
1107
ADP1853ACPZ-R7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)2.75V ~ 20V
Frequency - Switching200kHz ~ 1.5MHz
Duty Cycle (Max)90%
Synchronous RectifierYes
Clock SyncYes
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Frequency Control, Power Good, Ramp, Soft Start, Tracking
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case20-WFQFN Exposed Pad, CSP
Supplier Device Package20-LFCSP-WQ (4x4)
Request Quote Now
Request Quote Now

We can supply ADP1853ACPZ-R7, use the request quote form to request ADP1853ACPZ-R7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ADP1853ACPZ-R7. The price and lead time for ADP1853ACPZ-R7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ADP1853ACPZ-R7. We look forward to working with you to establish long-term relations of cooperation.
