Series | XC9302 | |
Package | Tape & Reel (TR) | |
Part Status | Active | |
Output Type | PWM | |
Function | Step-Up/Step-Down | |
Output Configuration | Positive | |
Topology | Buck-Boost | |
Number of Outputs | 1 | |
Output Phases | 1 | |
Voltage - Supply (Vcc/Vdd) | 2V ~ 10V | |
Frequency - Switching | 300kHz | |
Duty Cycle (Max) | 92% | |
Synchronous Rectifier | No | |
Clock Sync | No | |
Serial Interfaces | - | |
Control Features | Enable | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |

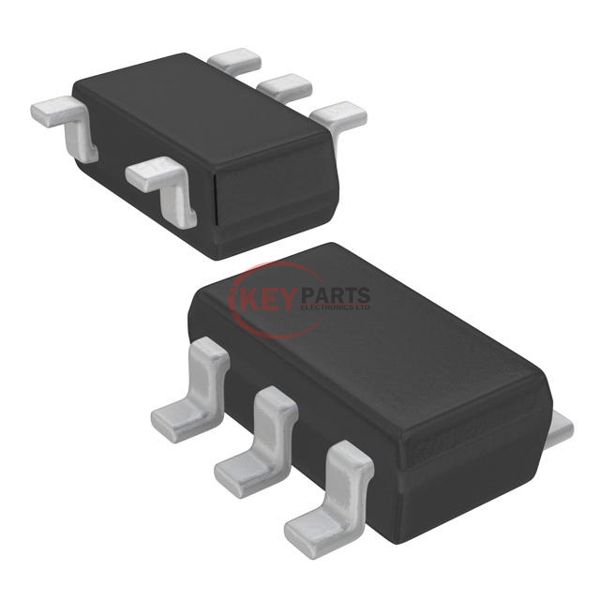

Package / Case | SC-74A, SOT-753 | |
Supplier Device Package | SOT-25 |
We can supply XC9302A503MR-G, use the request quote form to request XC9302A503MR-G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number XC9302A503MR-G. The price and lead time for XC9302A503MR-G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# XC9302A503MR-G. We look forward to working with you to establish long-term relations of cooperation.
![]() |
