CKG45NX7R1C226M500JH

Enlarger

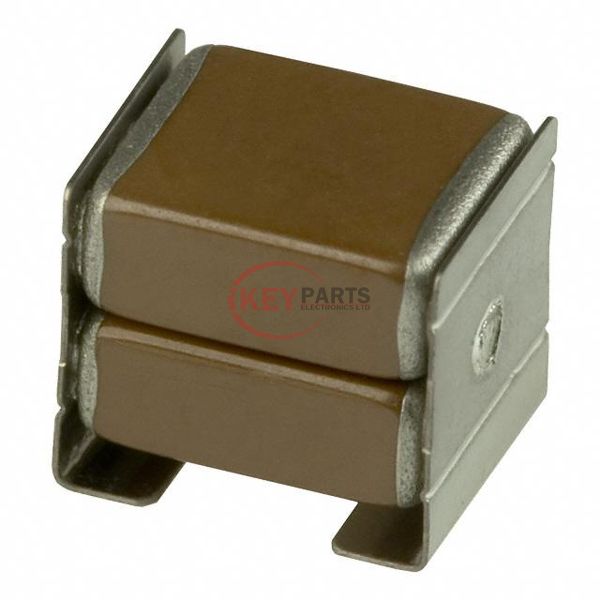

Lmages are for reference only See Product Specitications

TDK Corporation CKG45NX7R1C226M500JH

Manufacturer :
TDK Corporation
Mfr. Part # :
CKG45NX7R1C226M500JH
Description
CAP CER 22UF 16V X7R SMD
Catalog
Ceramic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CKG45NX7R1C226M500JH PDF
CKG45NX7R1C226M500JH Tech Specifications
SeriesMEGACAP, CKG
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusNot For New Designs
Capacitance22 µF
Tolerance±20%
Voltage - Rated16V
Temperature CoefficientX7R
Operating Temperature-55°C ~ 125°C
FeaturesLow ESL (Stacked)
Ratings-
ApplicationsSMPS Filtering, Bypass, Decoupling
Failure Rate-
Mounting TypeSurface Mount, MLCC
Package / CaseStacked SMD, 2 J-Lead
Size / Dimension0.197" L x 0.138" W (5.00mm x 3.50mm)
Height - Seated (Max)-
Thickness (Max)0.217" (5.50mm)
Lead Spacing-
Lead StyleJ-Lead
Request Quote Now
Request Quote Now

We can supply CKG45NX7R1C226M500JH, use the request quote form to request CKG45NX7R1C226M500JH pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CKG45NX7R1C226M500JH. The price and lead time for CKG45NX7R1C226M500JH depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CKG45NX7R1C226M500JH. We look forward to working with you to establish long-term relations of cooperation.
