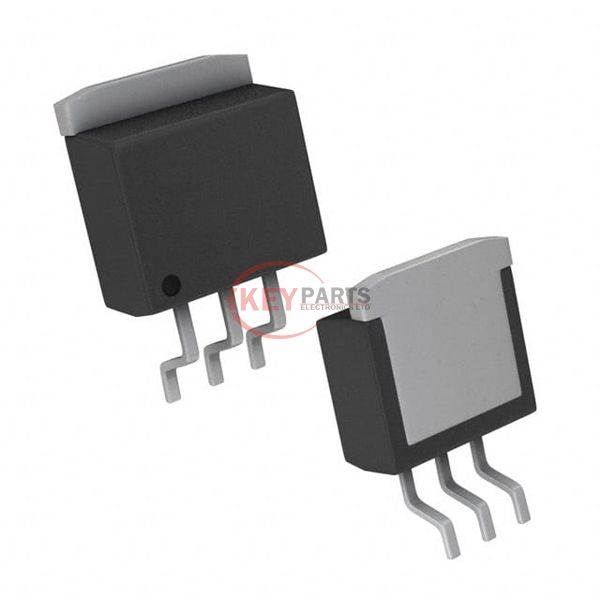

IPB100N12S305ATMA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPB100N12S305ATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPB100N12S305ATMA1
Description
MOSFET N-CH 120V 100A TO263-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPB100N12S305ATMA1 PDF
IPB100N12S305ATMA1 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)120 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs5.1mOhm @ 100A, 10V
Vgs(th) (Max) @ Id4V @ 240µA
Gate Charge (Qg) (Max) @ Vgs185 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds11570 pF @ 25 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-3
Package / CaseTO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Request Quote Now
Request Quote Now

We can supply IPB100N12S305ATMA1, use the request quote form to request IPB100N12S305ATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPB100N12S305ATMA1. The price and lead time for IPB100N12S305ATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPB100N12S305ATMA1. We look forward to working with you to establish long-term relations of cooperation.
