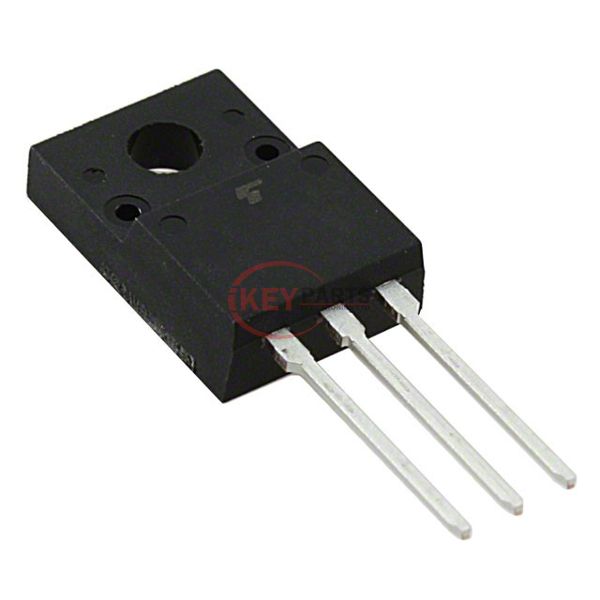

TK5A55D(STA4,Q,M)

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TK5A55D(STA4,Q,M)

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TK5A55D(STA4,Q,M)
Description
MOSFET N-CH 550V 5A TO220SIS
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TK5A55D(STA4,Q,M) PDF
TK5A55D(STA4,Q,M) Tech Specifications
Seriesπ-MOSVII
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)550 V
Current - Continuous Drain (Id) @ 25°C5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.7Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id4.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds540 pF @ 25 V
FET Feature-
Power Dissipation (Max)35W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220SIS
Package / CaseTO-220-3 Full Pack
Request Quote Now
Request Quote Now

We can supply TK5A55D(STA4,Q,M), use the request quote form to request TK5A55D(STA4,Q,M) pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TK5A55D(STA4,Q,M). The price and lead time for TK5A55D(STA4,Q,M) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TK5A55D(STA4,Q,M). We look forward to working with you to establish long-term relations of cooperation.
