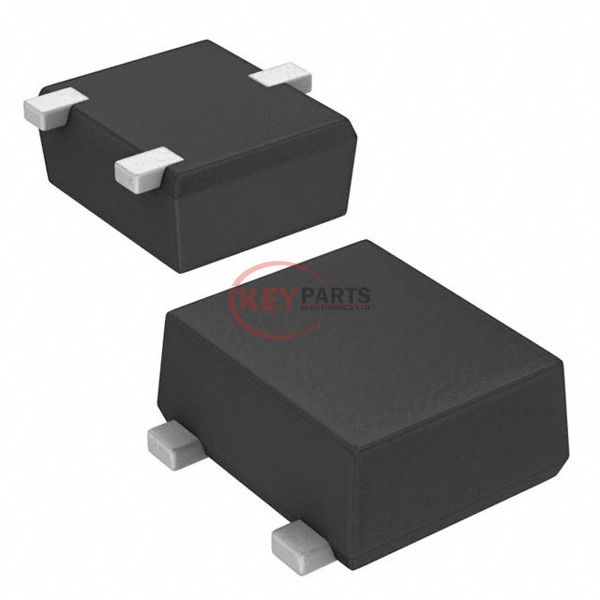

RZF020P01TL

Enlarger

Lmages are for reference only See Product Specitications

ROHM Semiconductor RZF020P01TL

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RZF020P01TL
Description
MOSFET P-CH 12V 2A TUMT3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RZF020P01TL PDF
RZF020P01TL Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs105mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs6.5 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds770 pF @ 6 V
FET Feature-
Power Dissipation (Max)800mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTUMT3
Package / Case3-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply RZF020P01TL, use the request quote form to request RZF020P01TL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RZF020P01TL. The price and lead time for RZF020P01TL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RZF020P01TL. We look forward to working with you to establish long-term relations of cooperation.
