STD6N60DM2

Enlarger

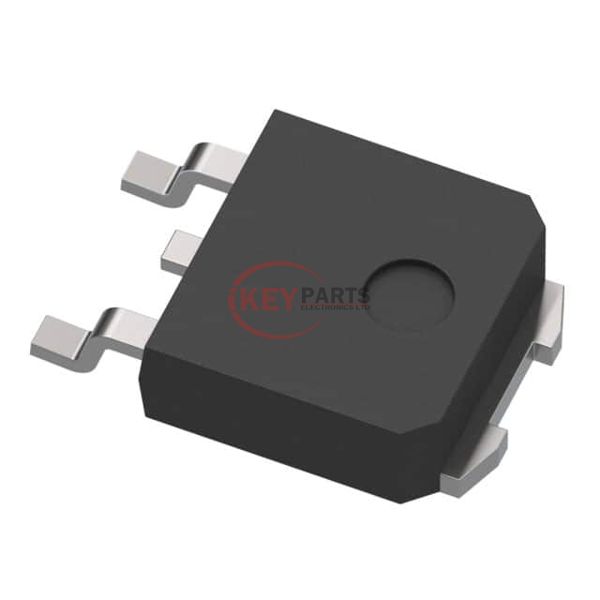

Lmages are for reference only See Product Specitications

STMicroelectronics STD6N60DM2

Manufacturer :
STMicroelectronics
Mfr. Part # :
STD6N60DM2
Description
MOSFET N-CH 600V 5A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STD6N60DM2 PDF
STD6N60DM2 Tech Specifications
SeriesMDmesh™ DM2
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.1Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.2 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds274 pF @ 100 V
FET Feature-
Power Dissipation (Max)60W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply STD6N60DM2, use the request quote form to request STD6N60DM2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STD6N60DM2. The price and lead time for STD6N60DM2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STD6N60DM2. We look forward to working with you to establish long-term relations of cooperation.
