TPH3205WSBQA

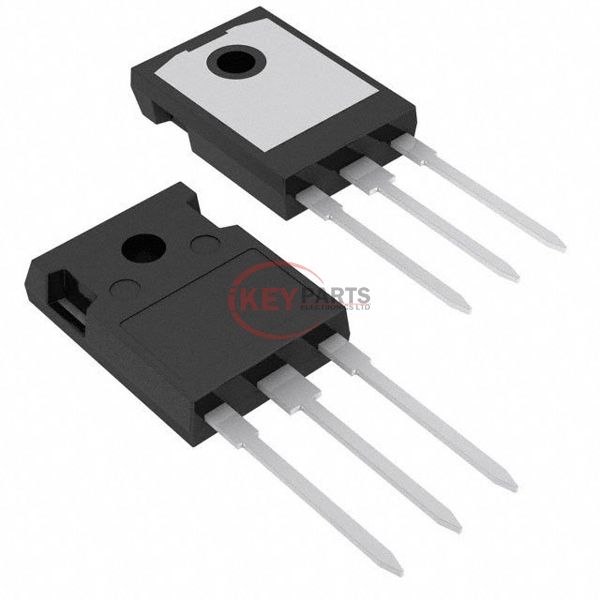

Enlarger

Lmages are for reference only See Product Specitications

Transphorm TPH3205WSBQA

Manufacturer :
Transphorm
Mfr. Part # :
TPH3205WSBQA
Description
GANFET N-CH 650V 35A TO247-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPH3205WSBQA PDF
TPH3205WSBQA Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTube
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs62mOhm @ 22A, 8V
Vgs(th) (Max) @ Id2.6V @ 700µA
Gate Charge (Qg) (Max) @ Vgs42 nC @ 8 V
Vgs (Max)±18V
Input Capacitance (Ciss) (Max) @ Vds2200 pF @ 400 V
FET Feature-
Power Dissipation (Max)125W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply TPH3205WSBQA, use the request quote form to request TPH3205WSBQA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPH3205WSBQA. The price and lead time for TPH3205WSBQA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPH3205WSBQA. We look forward to working with you to establish long-term relations of cooperation.
