PMPB10XNEAX

Enlarger

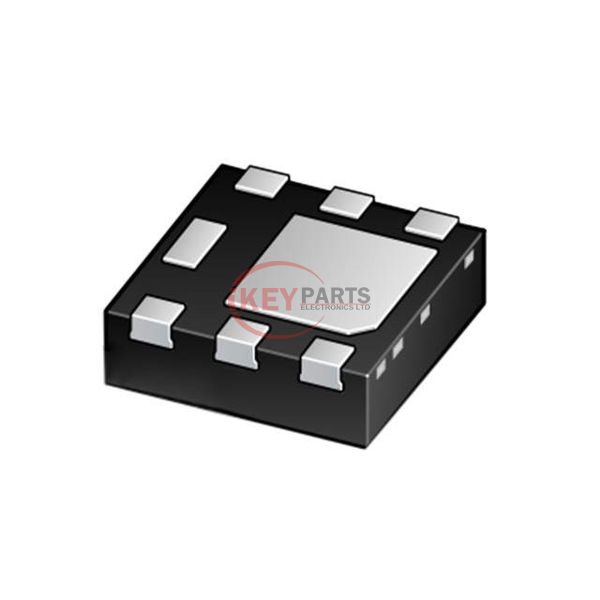

Lmages are for reference only See Product Specitications

Nexperia PMPB10XNEAX

Manufacturer :
Nexperia
Mfr. Part # :
PMPB10XNEAX
Description
MOSFET N-CH 20V 9A DFN2020MD-6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMPB10XNEAX PDF
PMPB10XNEAX Tech Specifications
SeriesAutomotive, AEC-Q101, TrenchMOS™
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs14mOhm @ 9A, 4.5V
Vgs(th) (Max) @ Id0.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs34 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds2.175 nF @ 10 V
FET Feature-
Power Dissipation (Max)1.7W (Ta), 12.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN2020MD-6
Package / Case6-UDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply PMPB10XNEAX, use the request quote form to request PMPB10XNEAX pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMPB10XNEAX. The price and lead time for PMPB10XNEAX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMPB10XNEAX. We look forward to working with you to establish long-term relations of cooperation.
