PMPB43XPEAX

Enlarger

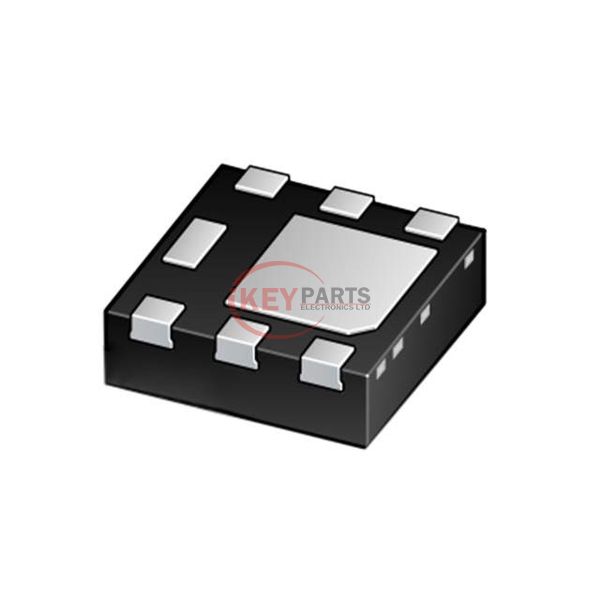

Lmages are for reference only See Product Specitications

Nexperia PMPB43XPEAX

Manufacturer :
Nexperia
Mfr. Part # :
PMPB43XPEAX
Description
MOSFET P-CH 20V 5A DFN2020MD-6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMPB43XPEAX PDF
PMPB43XPEAX Tech Specifications
SeriesAutomotive, AEC-Q101, TrenchMOS™
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs48mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs23.4 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1.55 nF @ 10 V
FET Feature-
Power Dissipation (Max)1.7W (Ta), 12.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN2020MD-6
Package / Case6-UDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply PMPB43XPEAX, use the request quote form to request PMPB43XPEAX pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMPB43XPEAX. The price and lead time for PMPB43XPEAX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMPB43XPEAX. We look forward to working with you to establish long-term relations of cooperation.
