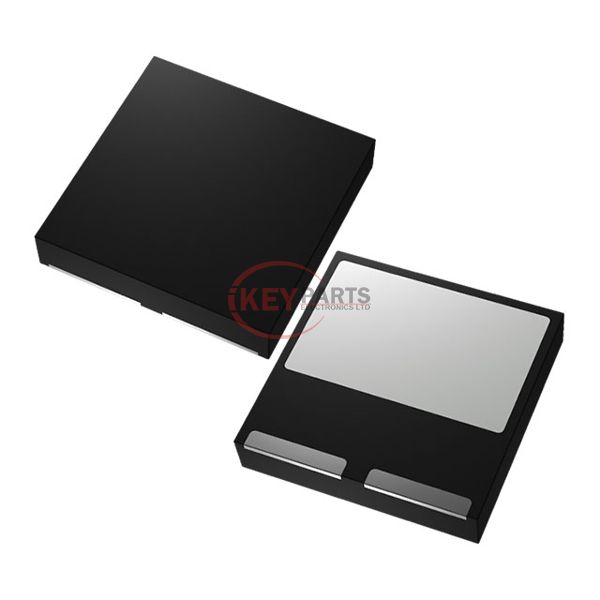

TP65H070LSG

Enlarger

Lmages are for reference only See Product Specitications

Transphorm TP65H070LSG

Manufacturer :
Transphorm
Mfr. Part # :
TP65H070LSG
Description
GANFET N-CH 650V 25A 3PQFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TP65H070LSG PDF
In Stock
920
TP65H070LSG Tech Specifications
SeriesTP65H070L
PackageTube
Part StatusDiscontinued at Digi-Key
FET TypeN-Channel
TechnologyGaNFET (Cascode Gallium Nitride FET)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs85mOhm @ 16A, 10V
Vgs(th) (Max) @ Id4.8V @ 700µA
Gate Charge (Qg) (Max) @ Vgs9.3 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds600 pF @ 400 V
FET Feature-
Power Dissipation (Max)96W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-PQFN (8x8)
Package / Case3-PowerDFN
Request Quote Now
Request Quote Now

We can supply TP65H070LSG, use the request quote form to request TP65H070LSG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TP65H070LSG. The price and lead time for TP65H070LSG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TP65H070LSG. We look forward to working with you to establish long-term relations of cooperation.
