CSD19532Q5B

Enlarger

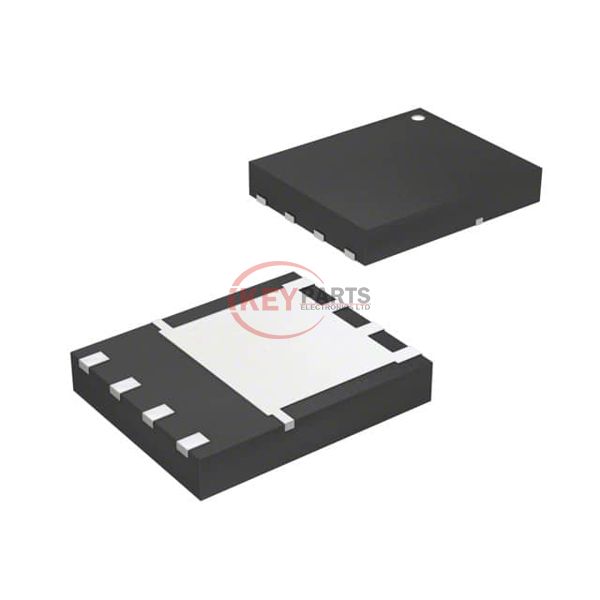

Lmages are for reference only See Product Specitications

Texas Instruments CSD19532Q5B

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD19532Q5B
Description
MOSFET N-CH 100V 100A 8VSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD19532Q5B PDF
In Stock
634
CSD19532Q5B Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C100A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs4.9mOhm @ 17A, 10V
Vgs(th) (Max) @ Id3.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs62 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4810 pF @ 50 V
FET Feature-
Power Dissipation (Max)3.1W (Ta), 195W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSON-CLIP (5x6)
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply CSD19532Q5B, use the request quote form to request CSD19532Q5B pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD19532Q5B. The price and lead time for CSD19532Q5B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD19532Q5B. We look forward to working with you to establish long-term relations of cooperation.
