STL4P3LLH6

Enlarger

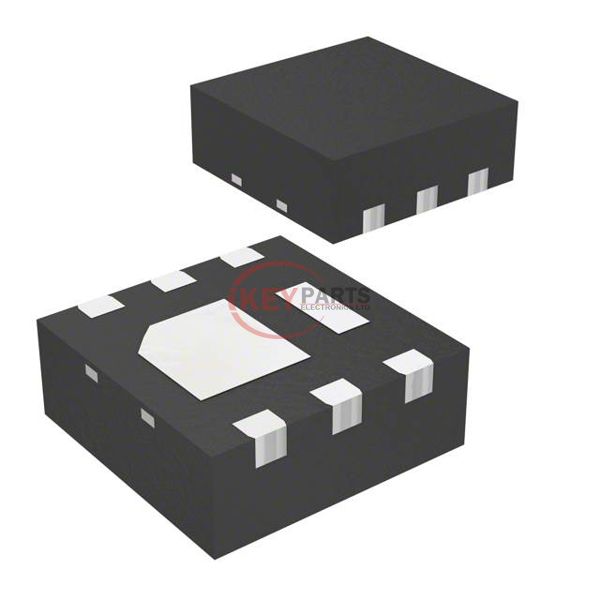

Lmages are for reference only See Product Specitications

STMicroelectronics STL4P3LLH6

Manufacturer :
STMicroelectronics
Mfr. Part # :
STL4P3LLH6
Description
MOSFET P-CH 30V 4A POWERFLAT
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STL4P3LLH6 PDF
STL4P3LLH6 Tech Specifications
SeriesDeepGATE™, STripFET™ H6
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs56mOhm @ 2A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds639 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.4W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (2x2)
Package / Case6-PowerWDFN
Request Quote Now
Request Quote Now

We can supply STL4P3LLH6, use the request quote form to request STL4P3LLH6 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STL4P3LLH6. The price and lead time for STL4P3LLH6 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STL4P3LLH6. We look forward to working with you to establish long-term relations of cooperation.
