DMN3026LVTQ-13

Enlarger

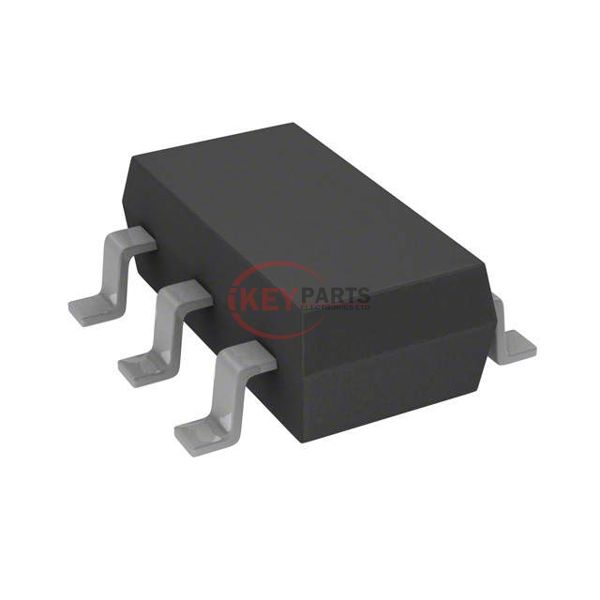

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMN3026LVTQ-13

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMN3026LVTQ-13
Description
MOSFET N-CH 30V 6.6A TSOT26
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMN3026LVTQ-13 PDF
In Stock
130000
DMN3026LVTQ-13 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C6.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs23mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12.5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds643 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTSOT-26
Package / CaseSOT-23-6 Thin, TSOT-23-6
Request Quote Now
Request Quote Now

We can supply DMN3026LVTQ-13, use the request quote form to request DMN3026LVTQ-13 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMN3026LVTQ-13. The price and lead time for DMN3026LVTQ-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMN3026LVTQ-13. We look forward to working with you to establish long-term relations of cooperation.
