FDZ294N

Enlarger

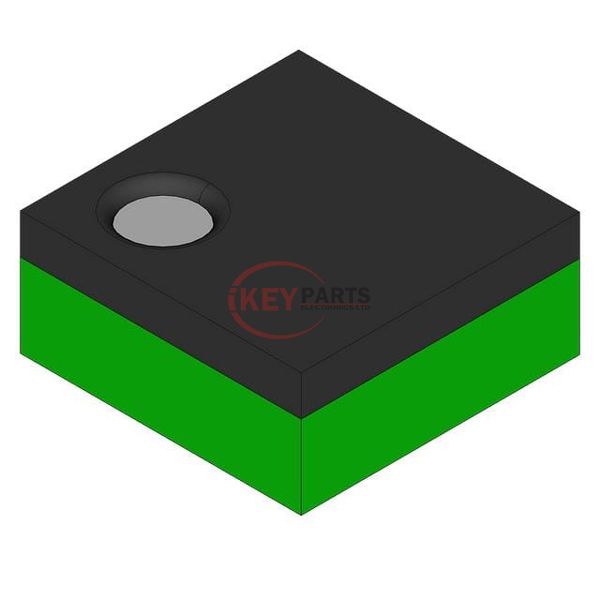

Lmages are for reference only See Product Specitications

Rochester Electronics FDZ294N

Manufacturer :
Rochester Electronics
Mfr. Part # :
FDZ294N
Description
MOSFET N-CH 20V 6A 9BGA
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDZ294N PDF
FDZ294N Tech Specifications
SeriesPowerTrench®
PackageBulk
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs23mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds670 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.7W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package9-BGA (1.5x1.6)
Package / Case9-VFBGA
Request Quote Now
Request Quote Now

We can supply FDZ294N, use the request quote form to request FDZ294N pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDZ294N. The price and lead time for FDZ294N depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDZ294N. We look forward to working with you to establish long-term relations of cooperation.
