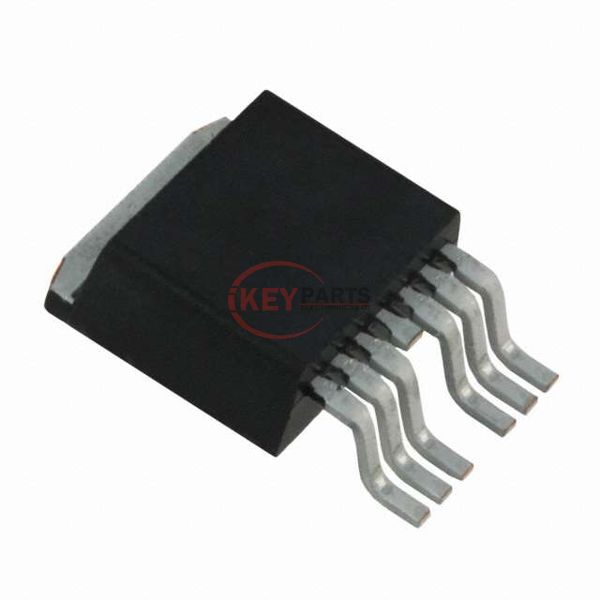

IPB180P04P4L02ATMA2

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPB180P04P4L02ATMA2

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPB180P04P4L02ATMA2
Description
MOSFET P-CH 40V 180A TO263-7
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPB180P04P4L02ATMA2 PDF
IPB180P04P4L02ATMA2 Tech Specifications
SeriesOptiMOS®-P2
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.4mOhm @ 100A, 10V
Vgs(th) (Max) @ Id2.2V @ 410µA
Gate Charge (Qg) (Max) @ Vgs286 nC @ 10 V
Vgs (Max)+5V, -16V
Input Capacitance (Ciss) (Max) @ Vds18700 pF @ 25 V
FET Feature-
Power Dissipation (Max)150W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-7-3
Package / CaseTO-263-7, D²Pak (6 Leads + Tab)
Request Quote Now
Request Quote Now

We can supply IPB180P04P4L02ATMA2, use the request quote form to request IPB180P04P4L02ATMA2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPB180P04P4L02ATMA2. The price and lead time for IPB180P04P4L02ATMA2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPB180P04P4L02ATMA2. We look forward to working with you to establish long-term relations of cooperation.
