STL36N55M5

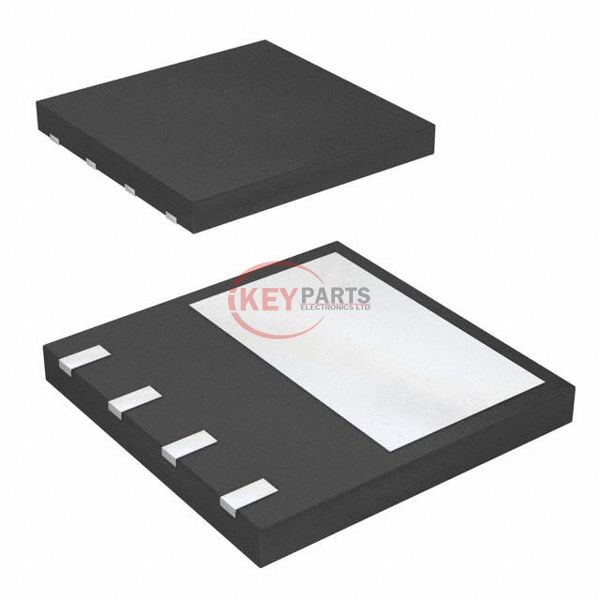

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STL36N55M5

Manufacturer :
STMicroelectronics
Mfr. Part # :
STL36N55M5
Description
MOSFET N-CH 550V 22.5A 4PWRFLAT
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STL36N55M5 PDF
STL36N55M5 Tech Specifications
SeriesMDmesh™ V
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)550 V
Current - Continuous Drain (Id) @ 25°C22.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs90mOhm @ 16.5A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs62 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds2670 pF @ 100 V
FET Feature-
Power Dissipation (Max)2.8W (Ta), 150W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (8x8) HV
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply STL36N55M5, use the request quote form to request STL36N55M5 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STL36N55M5. The price and lead time for STL36N55M5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STL36N55M5. We look forward to working with you to establish long-term relations of cooperation.
