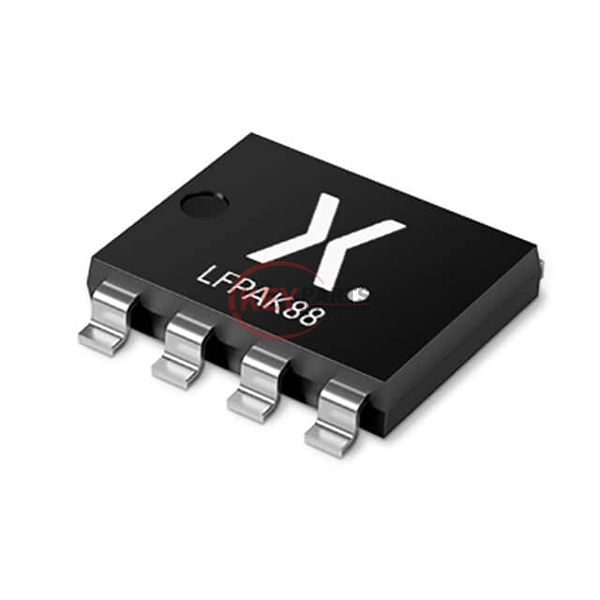

PSMNR70-40SSHJ

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PSMNR70-40SSHJ

Manufacturer :
Nexperia
Mfr. Part # :
PSMNR70-40SSHJ
Description
MOSFET N-CH 40V 425A LFPAK88
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PSMNR70-40SSHJ PDF
PSMNR70-40SSHJ Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C425A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs0.7mOhm @ 25A, 10V
Vgs(th) (Max) @ Id3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs202 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds15719 pF @ 25 V
FET FeatureSchottky Diode (Body)
Power Dissipation (Max)375W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK88 (SOT1235)
Package / CaseSOT-1235
Request Quote Now
Request Quote Now

We can supply PSMNR70-40SSHJ, use the request quote form to request PSMNR70-40SSHJ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PSMNR70-40SSHJ. The price and lead time for PSMNR70-40SSHJ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PSMNR70-40SSHJ. We look forward to working with you to establish long-term relations of cooperation.
