BSC011N03LSTATMA1

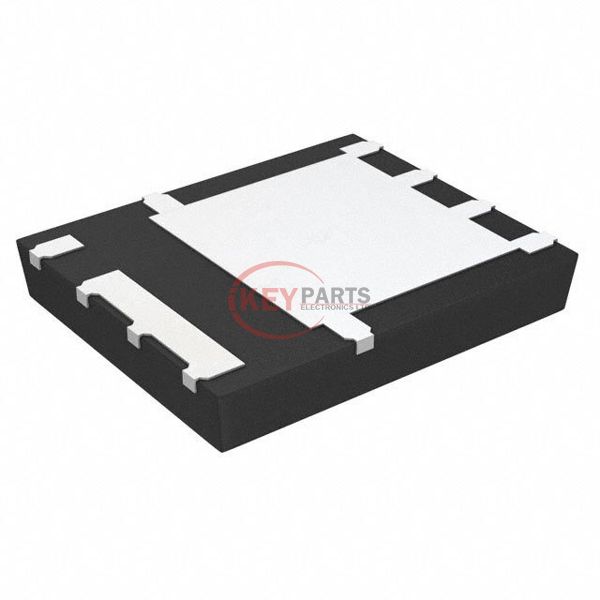

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSC011N03LSTATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSC011N03LSTATMA1
Description
MOSFET N-CH 30V 39A/100A TDSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSC011N03LSTATMA1 PDF
BSC011N03LSTATMA1 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C39A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.1mOhm @ 30A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs48 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6300 pF @ 15 V
FET Feature-
Power Dissipation (Max)3W (Ta), 115W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8 FL
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply BSC011N03LSTATMA1, use the request quote form to request BSC011N03LSTATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSC011N03LSTATMA1. The price and lead time for BSC011N03LSTATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSC011N03LSTATMA1. We look forward to working with you to establish long-term relations of cooperation.
