IMW120R220M1HXKSA1

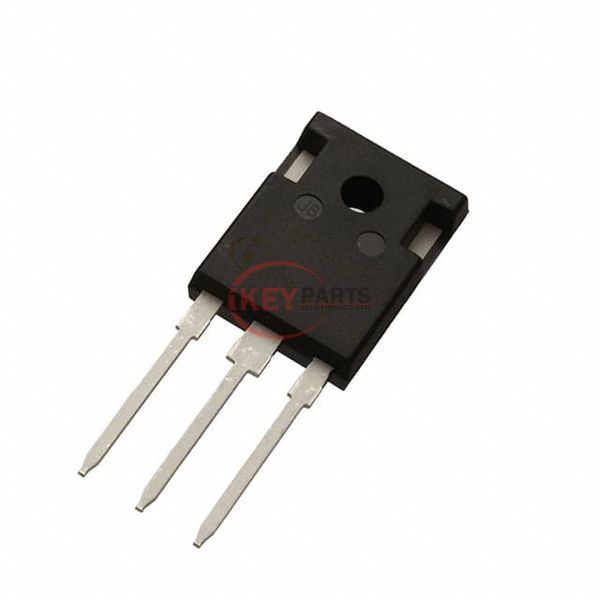

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IMW120R220M1HXKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IMW120R220M1HXKSA1
Description
SICFET N-CH 1.2KV 13A TO247-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IMW120R220M1HXKSA1 PDF
In Stock
696
IMW120R220M1HXKSA1 Tech Specifications
SeriesCoolSiC™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1.2 kV
Current - Continuous Drain (Id) @ 25°C13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V, 18V
Rds On (Max) @ Id, Vgs286mOhm @ 4A, 18V
Vgs(th) (Max) @ Id5.7V @ 1.6mA
Gate Charge (Qg) (Max) @ Vgs8.5 nC @ 18 V
Vgs (Max)+23V, -7V
Input Capacitance (Ciss) (Max) @ Vds289 pF @ 800 V
FET Feature-
Power Dissipation (Max)75W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO247-3-41
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply IMW120R220M1HXKSA1, use the request quote form to request IMW120R220M1HXKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IMW120R220M1HXKSA1. The price and lead time for IMW120R220M1HXKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IMW120R220M1HXKSA1. We look forward to working with you to establish long-term relations of cooperation.
