DMTH69M8LFVW-13

Enlarger

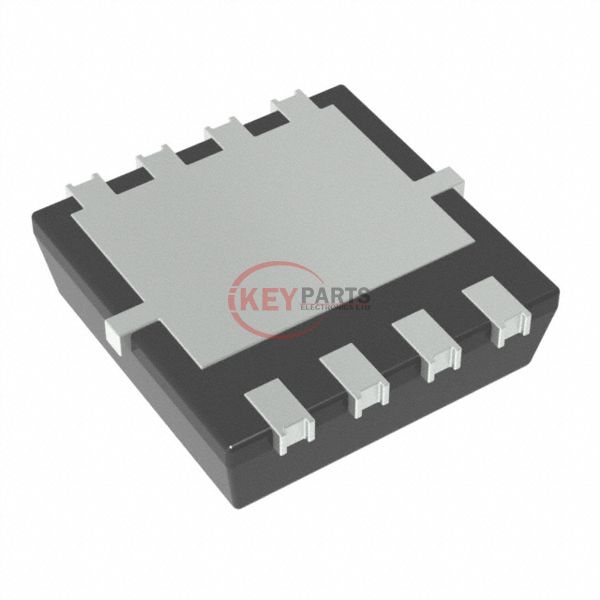

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMTH69M8LFVW-13

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMTH69M8LFVW-13
Description
MOSFET N-CH 60V 15.9/45.4A PWRDI
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMTH69M8LFVW-13 PDF
DMTH69M8LFVW-13 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C15.9A (Ta), 45.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs9.5mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs33.5 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds1925 pF @ 30 V
FET Feature-
Power Dissipation (Max)3.6W (Ta), 29.4W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8 (SWP) Type UX
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply DMTH69M8LFVW-13, use the request quote form to request DMTH69M8LFVW-13 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMTH69M8LFVW-13. The price and lead time for DMTH69M8LFVW-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMTH69M8LFVW-13. We look forward to working with you to establish long-term relations of cooperation.
