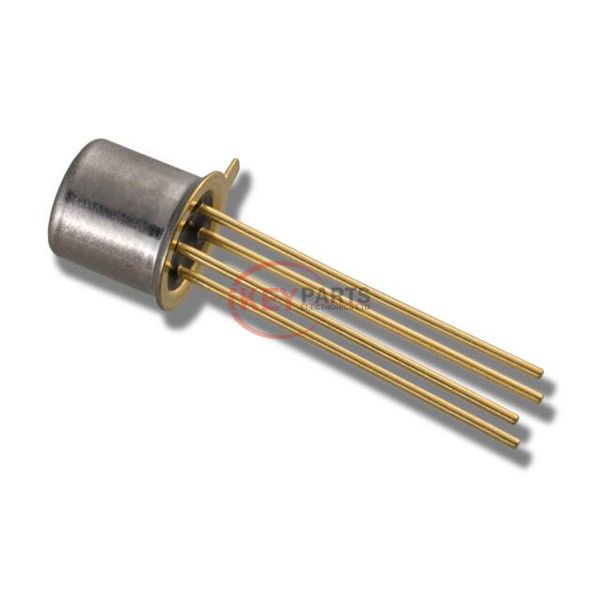

SD215DE TO-72 4L

Enlarger

Lmages are for reference only See Product Specitications

Linear Integrated Systems, Inc. SD215DE TO-72 4L

Manufacturer :
Linear Integrated Systems, Inc.
Mfr. Part # :
SD215DE TO-72 4L
Description
HIGH SPEED N-CHANNEL LATERAL DMO
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SD215DE TO-72 4L PDF
In Stock
261
SD215DE TO-72 4L Tech Specifications
SeriesSD215
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C50mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V, 25V
Rds On (Max) @ Id, Vgs45Ohm @ 1mA, 10V
Vgs(th) (Max) @ Id1.5V @ 1µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)+30V, -25V
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)300mW (Ta)
Operating Temperature-55°C ~ 125°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-72-4
Package / CaseTO-206AF, TO-72-4 Metal Can
Request Quote Now
Request Quote Now

We can supply SD215DE TO-72 4L, use the request quote form to request SD215DE TO-72 4L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SD215DE TO-72 4L. The price and lead time for SD215DE TO-72 4L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SD215DE TO-72 4L. We look forward to working with you to establish long-term relations of cooperation.
