IPB180N06S4H1ATMA2

Enlarger

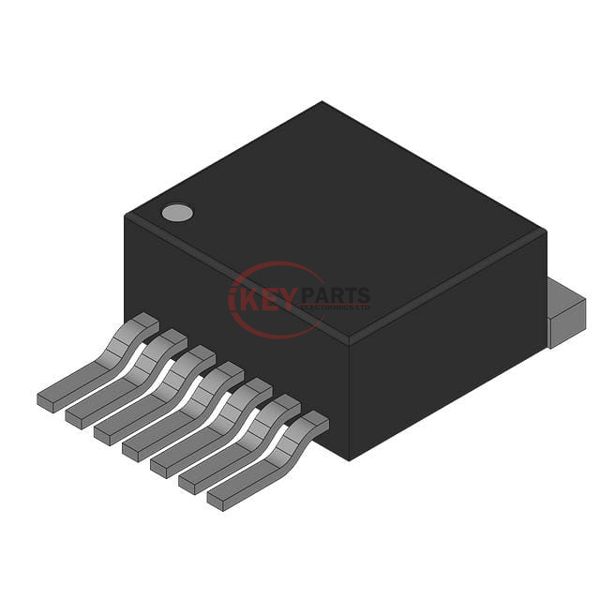

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPB180N06S4H1ATMA2

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPB180N06S4H1ATMA2
Description
MOSFET N-CH 60V 180A TO263-7
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPB180N06S4H1ATMA2 PDF
IPB180N06S4H1ATMA2 Tech Specifications
SeriesAutomotive, AEC-Q101, OptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.7mOhm @ 100A, 10V
Vgs(th) (Max) @ Id4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs270 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds21900 pF @ 25 V
FET Feature-
Power Dissipation (Max)250W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-7-3
Package / CaseTO-263-7, D²Pak (6 Leads + Tab), TO-263CB
Request Quote Now
Request Quote Now

We can supply IPB180N06S4H1ATMA2, use the request quote form to request IPB180N06S4H1ATMA2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPB180N06S4H1ATMA2. The price and lead time for IPB180N06S4H1ATMA2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPB180N06S4H1ATMA2. We look forward to working with you to establish long-term relations of cooperation.
