FDMC510P-F106

Enlarger

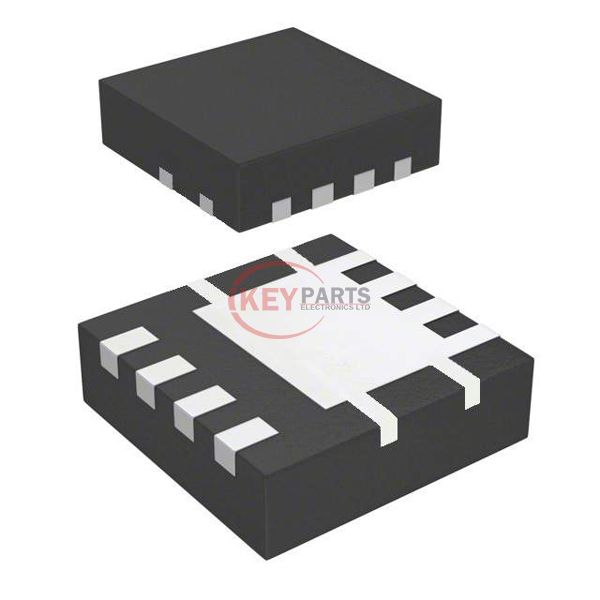

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDMC510P-F106

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDMC510P-F106
Description
MOSFET P-CH 20V 12A/18A 8WDFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDMC510P-F106 PDF
FDMC510P-F106 Tech Specifications
SeriesPowerTrench®
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C12A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs8mOhm @ 12A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs116 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds7860 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 41W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-WDFN (3.3x3.3)
Package / Case8-PowerWDFN
Request Quote Now
Request Quote Now

We can supply FDMC510P-F106, use the request quote form to request FDMC510P-F106 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDMC510P-F106. The price and lead time for FDMC510P-F106 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDMC510P-F106. We look forward to working with you to establish long-term relations of cooperation.
