CSD18503Q5A

Enlarger

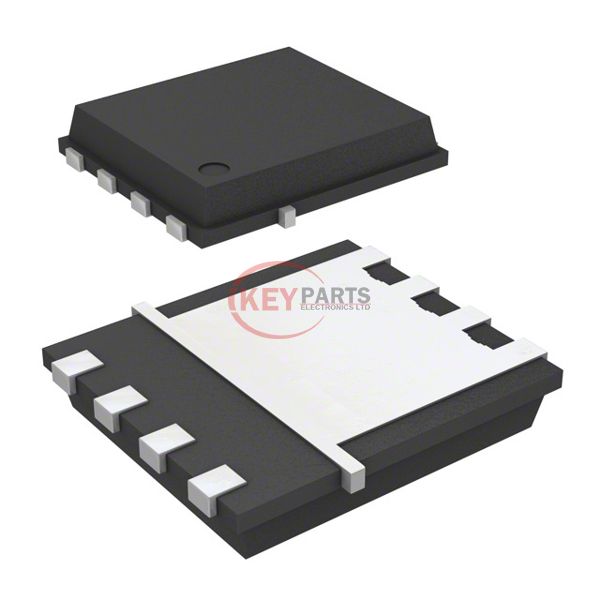

Lmages are for reference only See Product Specitications

Texas Instruments CSD18503Q5A

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD18503Q5A
Description
MOSFET N-CH 40V 19A/100A 8VSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD18503Q5A PDF
CSD18503Q5A Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C19A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.3mOhm @ 22A, 10V
Vgs(th) (Max) @ Id2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs32 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2640 pF @ 20 V
FET Feature-
Power Dissipation (Max)3.1W (Ta), 120W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSONP (5x6)
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply CSD18503Q5A, use the request quote form to request CSD18503Q5A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD18503Q5A. The price and lead time for CSD18503Q5A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD18503Q5A. We look forward to working with you to establish long-term relations of cooperation.
