TPN11006PL,LQ

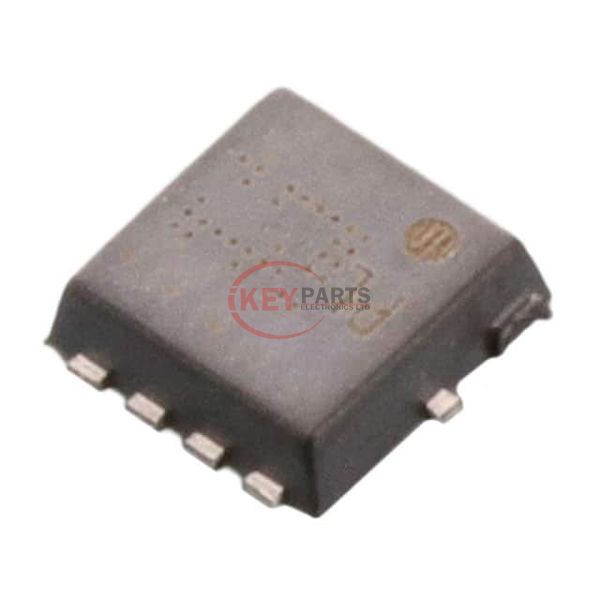

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TPN11006PL,LQ

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TPN11006PL,LQ
Description
MOSFET N-CH 60V 26A 8TSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPN11006PL,LQ PDF
TPN11006PL,LQ Tech Specifications
SeriesU-MOSIX-H
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C26A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs11.4mOhm @ 13A, 10V
Vgs(th) (Max) @ Id2.5V @ 200µA
Gate Charge (Qg) (Max) @ Vgs17 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1625 pF @ 30 V
FET Feature-
Power Dissipation (Max)610mW (Ta), 61W (Tc)
Operating Temperature175°C
Mounting TypeSurface Mount
Supplier Device Package8-TSON Advance (3.3x3.3)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply TPN11006PL,LQ, use the request quote form to request TPN11006PL,LQ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPN11006PL,LQ. The price and lead time for TPN11006PL,LQ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPN11006PL,LQ. We look forward to working with you to establish long-term relations of cooperation.
