PMZB290UNE,315

Enlarger

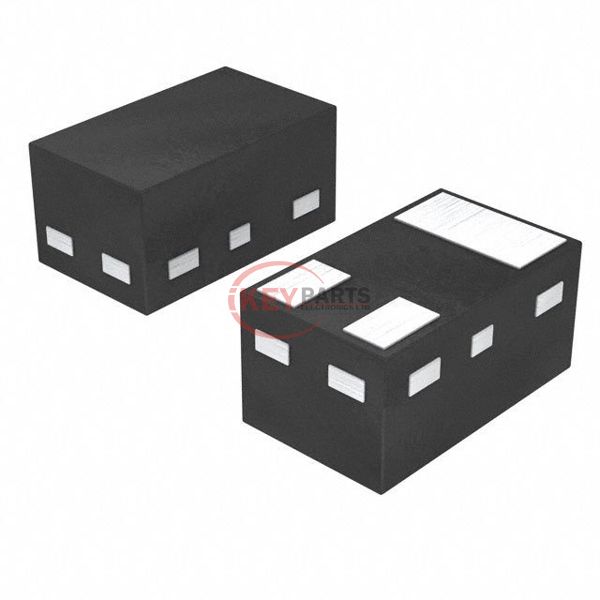

Lmages are for reference only See Product Specitications

Rochester Electronics PMZB290UNE,315

Manufacturer :
Rochester Electronics
Mfr. Part # :
PMZB290UNE,315
Description
MOSFET N-CH 20V 1A DFN1006B-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMZB290UNE,315 PDF
In Stock
1261575
PMZB290UNE,315 Tech Specifications
Series-
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs380mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.68 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds83 pF @ 10 V
FET Feature-
Power Dissipation (Max)360mW (Ta), 2.7W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN1006B-3
Package / Case3-XFDFN
Request Quote Now
Request Quote Now

We can supply PMZB290UNE,315, use the request quote form to request PMZB290UNE,315 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMZB290UNE,315. The price and lead time for PMZB290UNE,315 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMZB290UNE,315. We look forward to working with you to establish long-term relations of cooperation.
