RM1A5N30S3AE

Enlarger

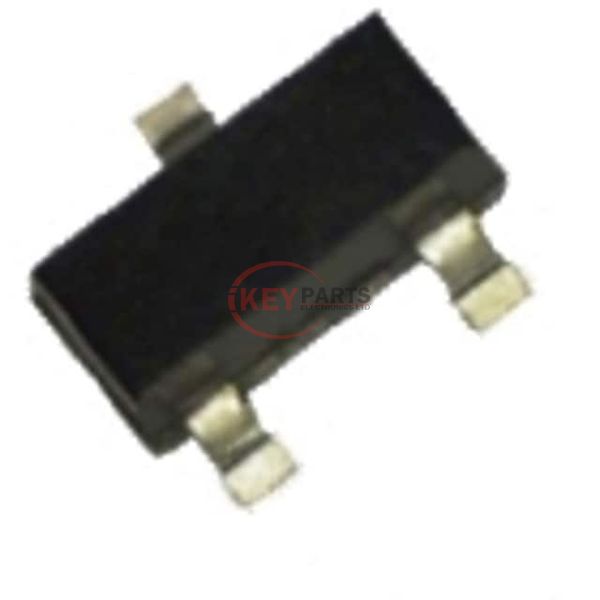

Lmages are for reference only See Product Specitications

Rectron USA RM1A5N30S3AE

Manufacturer :
Rectron USA
Mfr. Part # :
RM1A5N30S3AE
Description
MOSFET N-CH 30V 1.5A/1.4A SOT323
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RM1A5N30S3AE PDF
In Stock
465
RM1A5N30S3AE Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C1.5A (Ta), 1.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs144mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds105 pF @ 15 V
FET Feature-
Power Dissipation (Max)400mW (Ta), 500mW (Tc)
Operating Temperature-50°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-323
Package / CaseSC-70, SOT-323
Request Quote Now
Request Quote Now

We can supply RM1A5N30S3AE, use the request quote form to request RM1A5N30S3AE pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RM1A5N30S3AE. The price and lead time for RM1A5N30S3AE depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RM1A5N30S3AE. We look forward to working with you to establish long-term relations of cooperation.
