IRFHS8242TRPBF

Enlarger

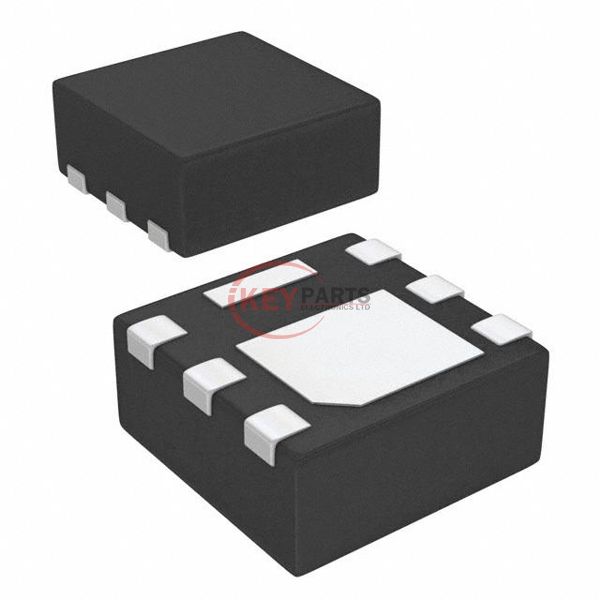

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRFHS8242TRPBF

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRFHS8242TRPBF
Description
MOSFET N-CH 25V 9.9A/21A 6PQFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRFHS8242TRPBF PDF
IRFHS8242TRPBF Tech Specifications
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C9.9A (Ta), 21A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs13mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs10.4 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds653 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-PQFN (2x2)
Package / Case6-PowerVDFN
Request Quote Now
Request Quote Now

We can supply IRFHS8242TRPBF, use the request quote form to request IRFHS8242TRPBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRFHS8242TRPBF. The price and lead time for IRFHS8242TRPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRFHS8242TRPBF. We look forward to working with you to establish long-term relations of cooperation.
