DMTH3004LK3Q-13

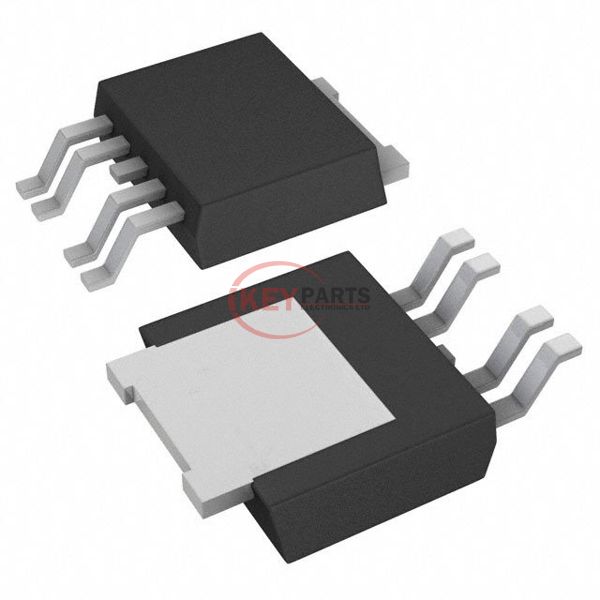

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMTH3004LK3Q-13

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMTH3004LK3Q-13
Description
MOSFET N-CH 30V 21A/75A TO252-4L
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMTH3004LK3Q-13 PDF
In Stock
42500
DMTH3004LK3Q-13 Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C21A (Ta), 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4mOhm @ 20A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs44 nC @ 10 V
Vgs (Max)+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds2370 pF @ 15 V
FET Feature-
Power Dissipation (Max)107W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252-4L
Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD
Request Quote Now
Request Quote Now

We can supply DMTH3004LK3Q-13, use the request quote form to request DMTH3004LK3Q-13 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMTH3004LK3Q-13. The price and lead time for DMTH3004LK3Q-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMTH3004LK3Q-13. We look forward to working with you to establish long-term relations of cooperation.
